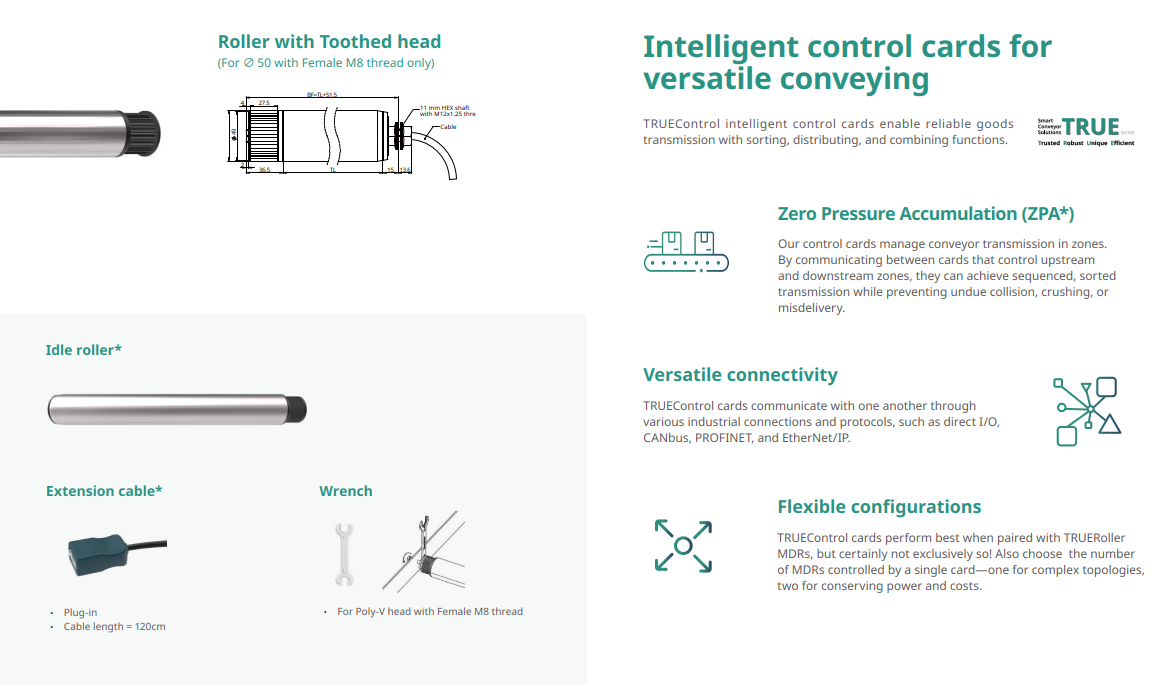

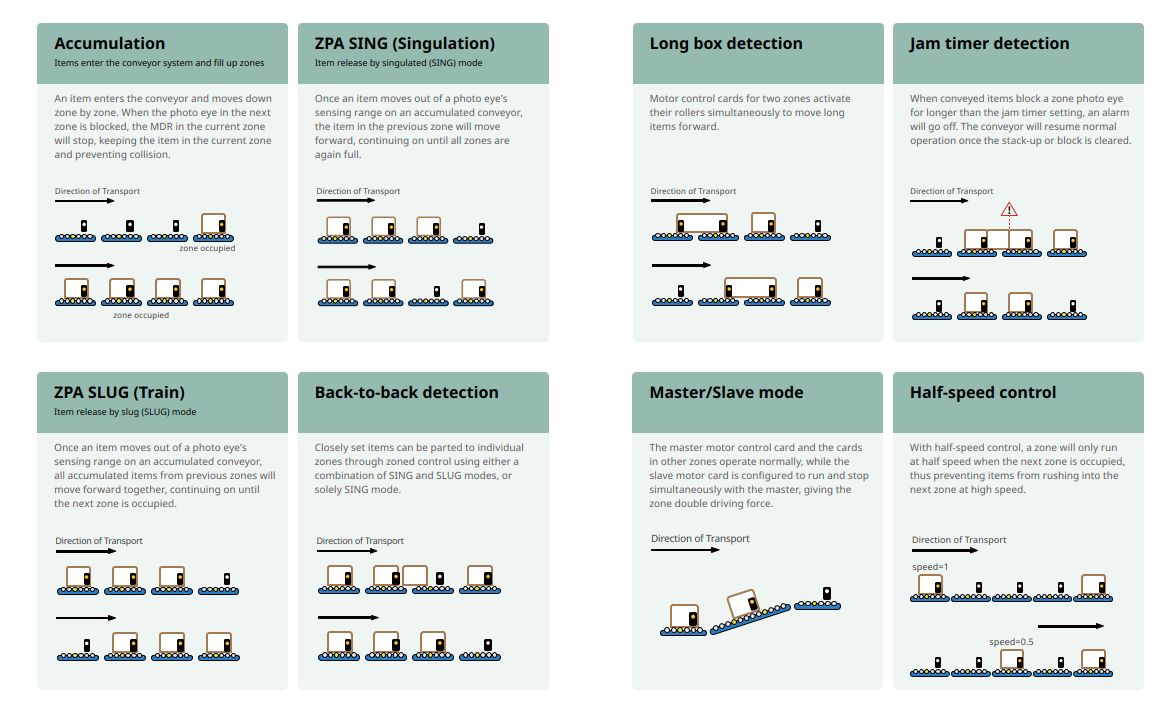

DC24V-Roller Motor with PLC、network intelligent control card
High torque、Long Life、Low Noise、Safe operation、Power Efficiency

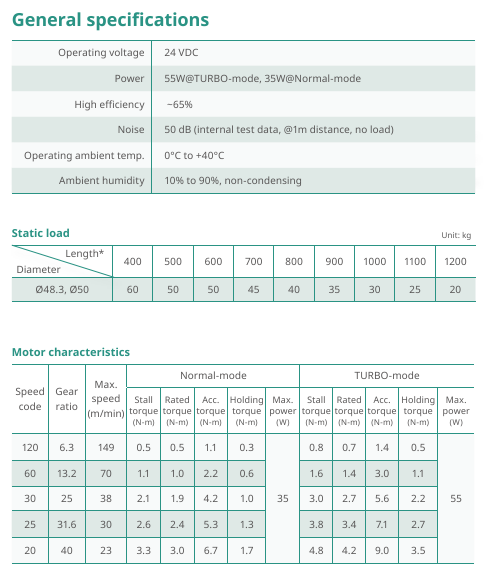

| Input Voltage | DCV |
|---|---|
| Phases | 1 |
| Rated Voltage (V) | 24V |
| Rated Speed | 149、70、38、30、23 m/min |
|---|---|
| Protection Class | IP54、IP64 |
| Installation Method | 11mm HEX、M8 Thread + M12 Thread |

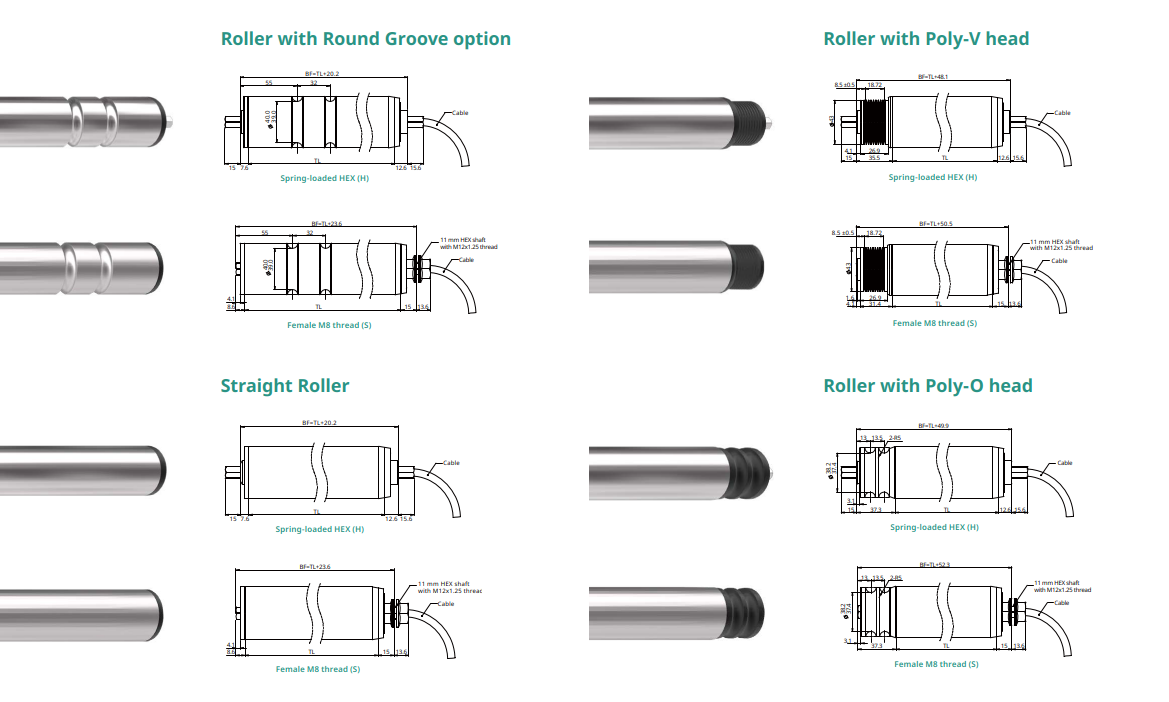

| Appearance/Design | zinc-plated (ZS)、Stainless steel (SS)、Round Groove、Straight、Poly-V belt、Poly-O belt、Toothed belt、OD: 50mm、OD:48. 3mm |
| Certifications | CE、UL、RoHS、EMC |

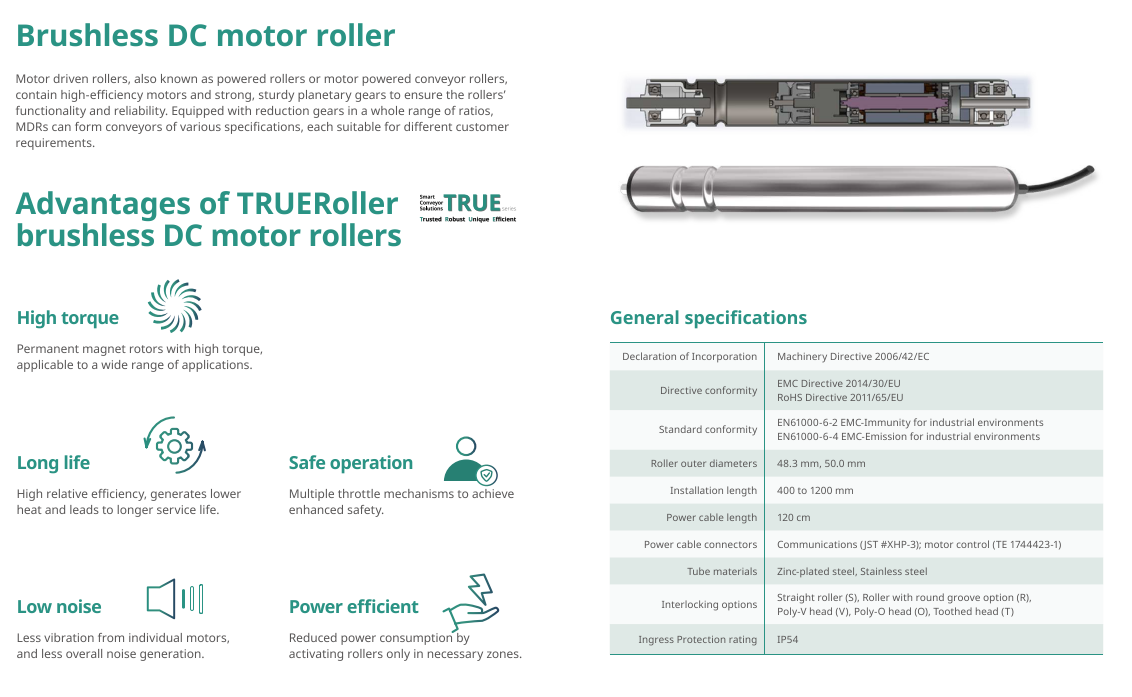

Motor driven rollers, also known as powered rollers or motor-powered conveyor rollers, contain high-efficiency motors and strong, sturdy planetary gears to ensure the rollers’ functionality and reliability. Equipped with reduction gears in a whole range of ratios, the rollers form conveyors of various specifications, each suitable for different customer requirements.
